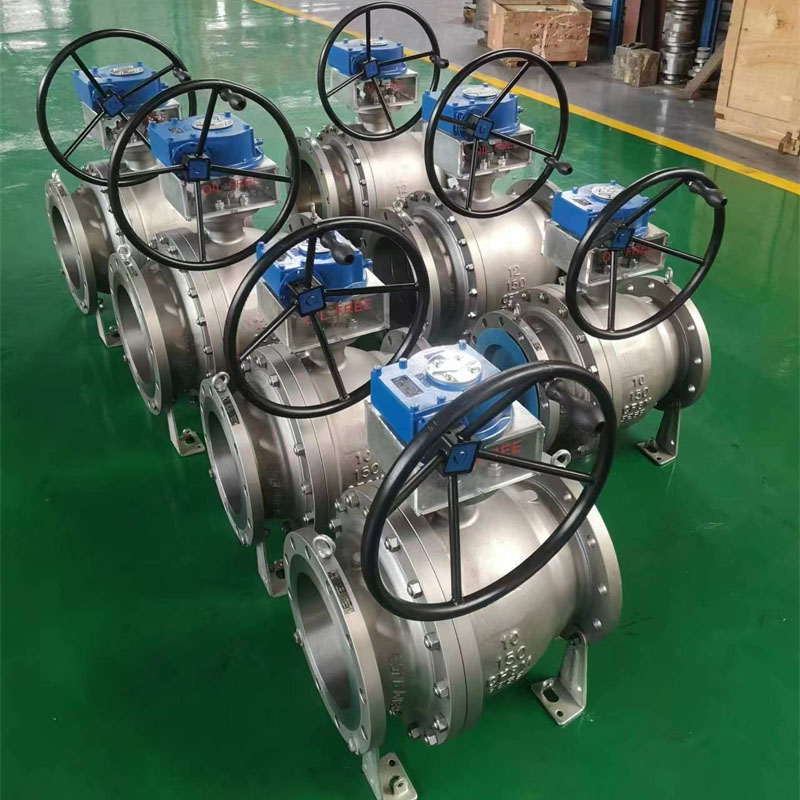

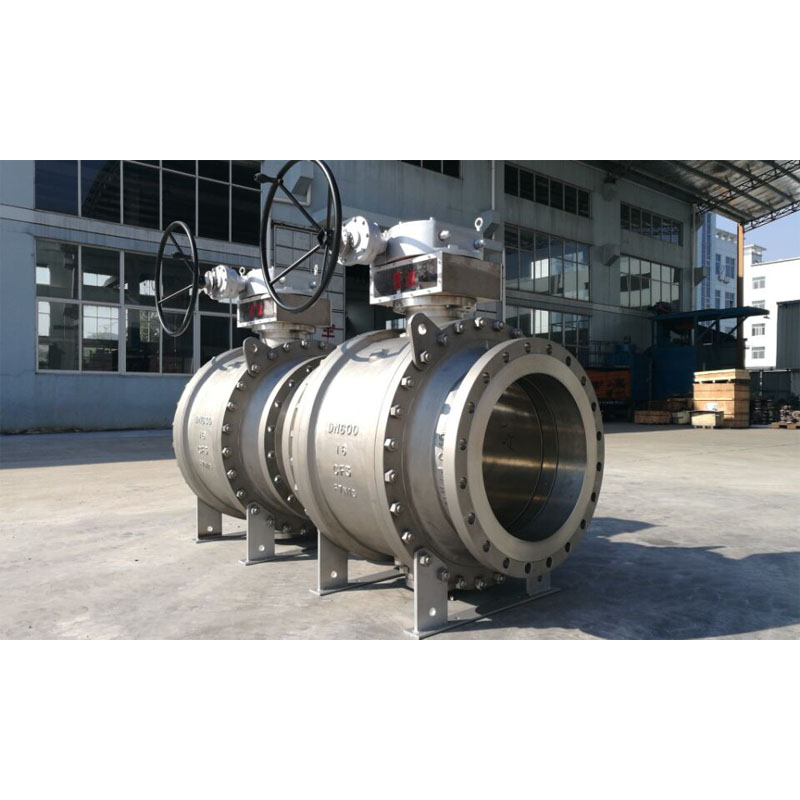

Das Oxygon-Kugelventil ist eine Art spezieller Kugelventil, dessen Ventile für das Oxygon-Gas im System verwendet werden und das während des Montage- und Installationsprozesses streng ölfrei sein sollte.
Design und Prüfung Internationaler Standard für zweiteilige Kugelhähne
Designstandard: BS EN ISO 17292 (BS 5351) / ASME B 16.34 / API 6D
Inspektions- und Teststandard: API 598/API 6D
Feuersicherheitsprüfstandard: API 607/API 6FA
Flansch-zu-Flansch-Länge: ANSI B 16.10 – kurzes Muster/langes Muster
Endverbindung: Flanschende nach ANSI B 16.5, Stumpfschweißenden, Standardschweißenden.
Herstellergröße und Druckbereich:
NPS 1/2 Zoll bis 48 Zoll (für ANSI-Klasse 150LB)
NPS 1/2“ bis 48“ (für ANSI-Klasse 300LB)
NPS 1/2 bis 48 Zoll (für ANSI-Klasse 600LB)
NPS 1/2“ bis 36“ (für ANSI-Klasse 900LB)
NPS 1/2 bis 24 Zoll (für ANSI-Klasse 1500LB)
NPS 1/2 bis 12 Zoll (für ANSI-Klasse 2500LB)
oder
DN15 bis DN1200 (für PN0,6 MPa, 1,6 MPa, PN2,0 MPa, PN2,5 MPa)
DN15 bis DN1200 (für PN4,0 MPa, PN5,0 MPa)
DN15 bis DN1200 (für PN6,3 MPa, PN10,0 MPa)
DN15 bis DN900 (für PN15,0 MPa)
DN15 bis DN600 (für PN25,0 MPa)
Rohrbohrung: Volle Bohrung (FB)/Reduzierte Bohrung (RB)
Baukörper: Seitlicher Einstieg
Motorhauben-/Abdeckungstyp: Verschraubte Motorhaube/verlängerte Motorhaube
Sitztyp: Weicher Typ
Strömungsrichtung: Unidirektional/Bidirektional
Servicemedium: Oxygongas
Merkmal: Brandschutzdesign
Antistatisches Design
Ausblassicherer Schaft
Ventilbetätigung: Manueller Hebel / Schneckengetriebe / Stellantrieb / pneumatischer Stellantrieb / elektrischer Stellantrieb
MOC (Bill of Material – BOM):
Gehäuse und Motorhaube: ASTM B148 C95800 (Al-Bronze)
: ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) (Edelstahl)
Massive Kugel: ASTM B148 C95800 (Al-Bronze)
: ASTM A 182 F304 / F316 (SS 304 / SS 316)
Vorbau: ASTM B148 C95800 (Al-Bronze)
: ASTM A 182 F304 / F316 (SS 304 / SS 316)
Kugelsitz und Gehäusedichtung: reines PTFE / 25 % glasfaserverstärktes PTFE
: PEEK / Delrin / Grafoil – Graphitring
Stopfbuchspackung: Reines PTFE / 25 % glasfaserverstärktes PTFE – GFT / kohlenstoffgefülltes PTFE – CFT
